Model 818 Safety C-Hook Current Lead Set
Model 818 Safety C-Hook Current Lead Set

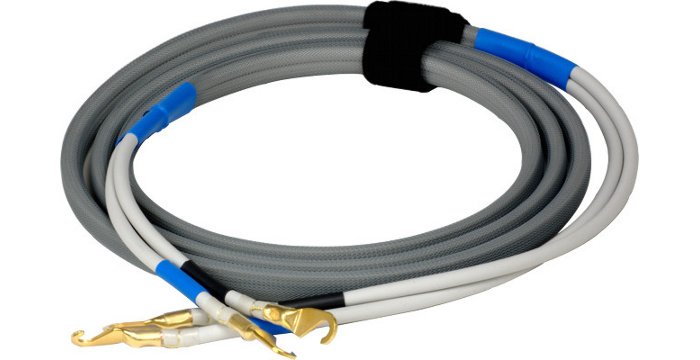

Test lead set featuring gold-plated 0.25 in Safety C-Hook Lugs on both ends, available as individual cables or as a set, in #10 AWG Silicone lead wire.
Test Leads Data Sheet
Download (255 kB) »
The 818 Series Safety C-Hook Current Lead Sets answers customer requests for current leads that cannot be yanked loose from their connection to a terminal block. Our C-Hook design easily hooks on Arbiter Systems binding posts and other brands with a 0.25 in diameter post. Lead sets are constructed with gold-plated C-Hook lugs and our super flexible 10 AWG, fine strand, rope-lay conductors, available in Silicone insulation.
Available as individual phase labeled pairs or as a three-phase, three pair set, each pair are enclosed in gray PET armor and come with a hook and loop lashing strap.
Intended for everyday use by technicians in the most demanding environments, the 818 Series Safety C-Hook Current Lead Sets are designed for long life and are suitable for use with all Arbiter Systems Inc. three-phase current measuring products.
Also available with our gold-plated, 0.25 in spade lugs. (See 816 Series)
- Gold-Plated, 0.25 in, Safety C-Hook lugs on both ends
- Available #10 AWG Silicone lead wire
- AØ-Red, BØ-Yellow, CØ-Blue phase markings
- Specify length when ordering. Standard length is 2.5 m (8 ft).
- Individual pairs or as a set for three-phase testing
Build-a-Part Ordering Structure:
| 818 | - | - | - | 8* | ||
| Series | Insulation | Lead Type | Length | |||
| C = Silicone | A = Single Phase, AØ-Red | in feet | ||||
| B = Single Phase, BØ-Yellow | ||||||
| C = Single Phase, CØ-Blue | ||||||
| T = Three Phase Set:, AØ-Red, BØ-Yellow, CØ-Blue |
* Standard Length.
Wire Type
Available in:
- #10 AWG, 1064 x #40 stranding, 1.15 mm (0.045 in) silicone insulation; 5.8 mm (0.230 in) OD.
Plug 1
Gold-Plated, 0.25 in Safety C-Hook Lug
Plug 2
Gold-Plated, 0.25 in Safety C-Hook Lug
Length
All lead sets are 2.5 m (8 ft) long overall, standard. Specify length in feet when ordering.
Color
Current leads: wire insulation color is gray; leads are supplied in pairs with colored phase markers on each pair (A Ø-red, B Ø-yellow, C Ø-blue) and colored polarity markers on each (+) lead (red, yellow, or blue) and (-) lead (black).
Velcro Strap
Included
Fused
No
