Model 813 Safety Voltage Probe Lead Set

Model 813 Safety Voltage Probe Lead Set

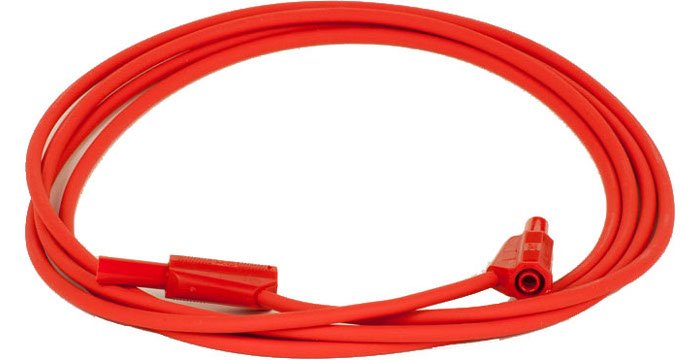

Features gold-plated, 4-mm, safety-shrouded, stackable banana plugs on both ends, includes plug-on accessories compatible with the banana plugs. Available in Santoprene or Silicone lead wire.

Test Leads Data Sheet
Download (255 kB) »

Made with our super flexible #16 AWG, fine strand, rope lay conductors, the 813 series Safety Voltage Leads are available in single lead, single phase, or three-phase 4-wire lead sets.

The 813 series lead sets feature color coordinated, gold-plated, 4-mm, safety-shrouded, stackable banana plugs on both ends of the lead(s), and come standard with plug-on accessories.

Intended for everyday use by technicians in the most demanding environments, the 813 series Safety Voltage Lead Sets are designed for long life and are suitable for use with all Arbiter Systems Inc. voltage measuring products.

Note: Pictures are for illustration purpose only. Actual product may vary due to enhancement or change.

  • Single lead, single phase, or three-phase 4-wire lead sets available.
  • Gold-plated, 4-mm, safety-shrouded, stackable banana plugs on both ends.
  • Available in #16 AWG Santoprene or #16 AWG Silicone lead wire.
  • Multi-lead sets enclosed in PET armor and feature a hook and loop lashing strap.
  • Specify length when ordering. Standard length is 2.5 m (8 ft).

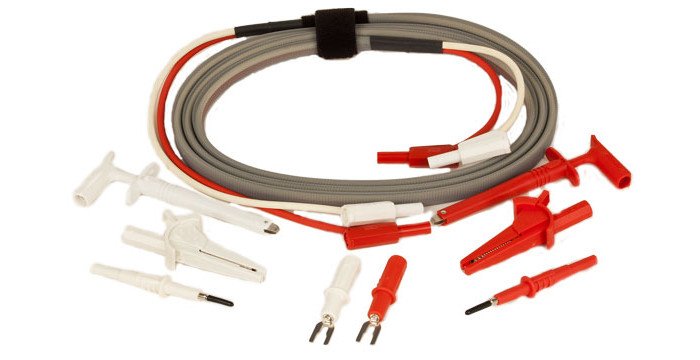

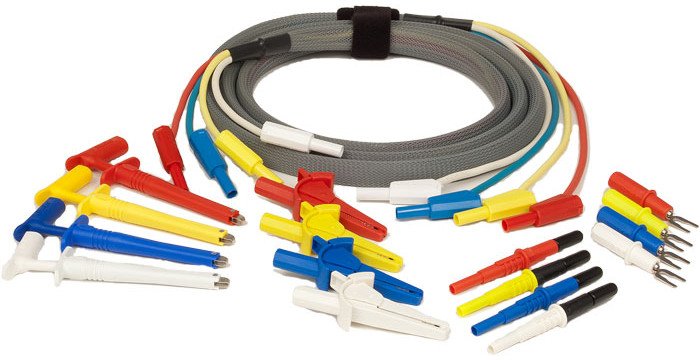

Included accessories with each Model 813 - per wire:

  • Safety plunger test clip
  • Insulated plug-on alligator clip
  • Plug-on test prod
  • Insulated banana/spade adapter

Each lead/set is color coordinated (wire, ends, and accessories). If a black neutral is specified, the white wire and accessories are replaced by black.

If plug-on accessories are not desired, lead set may be ordered without them. Accessories may also be purchased in sets or separately, ala carte.

Build-a-Part Ordering Structure:

813 -   -   -  8* -
Series    Insulation    Lead Type    Length    Accessories
     A = Santoprene    A = Single Lead, AØ-Red    in feet    N = Remove
     B = Silicone    B = Single Lead, BØ-Yellow
         C = Single Lead, CØ-Blue
         K = Single Lead Black
         N = Single Lead White
         S = Single Phase, AØ-Red, White Neutral
         SB = Single Phase, BØ-Yellow, White Neutral
         SC = Single Phase, CØ-Blue, White Neutral
         SK = Single Phase, AØ-Red-Black Neutral
         SKB = Single Phase, BØ-Yellow, Black Neutral
         SKC = Single Phase, CØ-Blue, Black Neutral
         T = Three Phase, AØ-Red, BØ-Yellow, CØ-Blue, White Neutral
         TK = Three Phase, AØ-Red, BØ-Yellow, CØ-Blue, Black Neutral

* Standard length.

Wire Type

Available in:

  • #16 AWG, 665 x #44 stranding, 1.5 mm (0.060 in) Santoprene insulation; 4.8 mm (0.187 in) OD.
  • #16 AWG, 665 x #44 stranding, 1.5 mm (0.060 in) silicone insulation; 4.8 mm (0.187 in) OD.

Usage

  • Three Phase Fused Safety Voltage Probe Lead Set.
  • Single-Phase Fused Safety Voltage Probe Lead Set.

Plug 1

Gold-Plated, 4-mm, Safety-Shrouded, Stackable Banana Plug

Plug 2

Gold-Plated, 4-mm, Safety-Shrouded, Stackable Banana Plug

Length

All lead sets are 2.5 m (8 ft) long overall, standard. Specify length in feet when ordering.

Color

PET armor = Gray

Voltage lead wire insulation color:

  • A Ø = red
  • B Ø = yellow
  • C Ø = blue
  • Neutral = white, standard
  • Neutral = black, optional

Velcro Strap

Included

Fused

No

There are no additional Options available for this product.

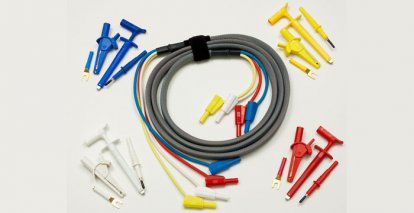

Each Voltage Lead Set includes colored adapters as specified below.

Included
AS0048502 Set of Test Lead Adapters (Red)
AS0048504 Set of Test Lead Adapters (Yellow)
AS0048506 Set of Test Lead Adapters (Blue)
AS0048509 Set of Test Lead Adapters (White)
Available
AP0003900 Safety Plunger Test Clip (Black)
AP0003902 Safety Plunger Test Clip (Red)
AP0003904 Safety Plunger Test Clip (Yellow)
AP0003906 Safety Plunger Test Clip (Blue)
AP0003909 Safety Plunger Test Clip (White)
AP0004000 Insulated Plug-On Alligator Clip (Black)
AP0004002 Insulated Plug-On Alligator Clip (Red)
AP0004004 Insulated Plug-On Alligator Clip (Yellow)
AP0004006 Insulated Plug-On Alligator Clip (Blue)
AP0004009 Insulated Plug-On Alligator Clip (White)
AP0004100 Plug-On Test Prod (Black)
AP0004102 Plug-On Test Prod (Red)
AP0004104 Plug-On Test Prod (Yellow)
AP0004106 Plug-On Test Prod (Blue)
AP0004109 Plug-On Test Prod (White)
AP0013000 1 Safety Voltage to Spade Lug Adapter (Black)
AP0013002 1 Safety Voltage to Spade Lug Adapter (Red)
AP0013004 1 Safety Voltage to Spade Lug Adapter (Yellow)
AP0013006 1 Safety Voltage to Spade Lug Adapter (Blue)
AP0013009 1 Safety Voltage to Spade Lug Adapter (White)
AS0048500 Set of Test Lead Adapters (Black)
CN0030500 Adaptor Banana Shielded - Red
CN0030501 Adaptor Banana Shielded - Black

1 Style received may vary from picture.
