Model 811 Universal Test Plug Current Lead Sets

Model 811 Universal Test Plug Current Lead Sets

Test lead set featuring a Universal Test Plug and gold-plated, 0.25 in spade lugs, available in Santoprene or Silicone lead wire. Now available in 16 AWG Santoprene or Silicone with stackable banana plugs.

Test Leads Data Sheet
Download (255 kB) »

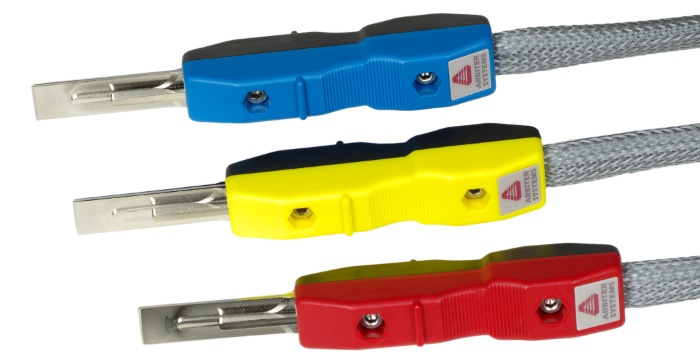

Arbiter strives to continuously improve all aspects of our product line, and the Universal Test Plug is no exception. The third-generation Universal Test Plug features the latest refinements to our industry-leading test plug design.

Refinements:

  • Shortened center-rib length — compatible with a wider variety of test jacks.
  • Thinner blade — easier insertion while maintaining strength and rigidity.
  • Improved plating — more durable and longer-lasting finish.

Compatible with ABB/Westinghouse™, GE™ FT, Superior™, Meter Devices™, and States™ series test jacks, the 811 Series Universal Test Plug Leads set the standard for quality and value. Made with nickel plated machined brass blades rather than stamped metal blades used by competitors, gold-plated, 0.25 in spade lugs or optional gold-plated C-Hooks, and our super flexible #10 AWG fine strand, rope-lay conductors, available in Santoprene or Silicone insulation.

Available as individual phase labeled pairs or as a three-phase, three pair set, each pair are enclosed in gray PET armor and come with a hook and loop lashing strap.

Now available in 16 AWG Santoprene or Silicone with stackable banana plugs. The same wire as the Model 813 Safety Voltage Probe Lead Set and Model 815 Fused Safety Voltage Probe Lead Set. If you need banana plugs instead of the spade lugs then this is the solution.

Intended for everyday use by technicians in the most demanding environments, the 811 series Universal Test Plug Current Lead Sets are designed for long life and are suitable for use with all Arbiter Systems Inc. three-phase current measuring products.

  • Nickel plated, machined brass blades.
  • Gold-plated, 0.25 in spade lugs or optional gold-plated C-Hooks. Or, if selecting the Stackable Banana Plugs: Gold-Plated, 4-mm, Safety-Shrouded, Stackable Banana Plug
  • Available in #10 AWG Santoprene or Silicone lead wire. Or, if selecting the Stackable Banana Plugs: #16 AWG Santoprene or Silicone lead wire.
  • AØ-Red, BØ-Yellow, CØ-Blue phase markings.
  • Specify length when ordering. Standard length is 2.5 m (8 ft).
  • Individual pairs or as a set for three-phase testing.
  • Available with optional C-hook lugs in place of the spade lugs.

Build-a-Part Ordering Structure:

Blue

811 -   -   - 8* -
Series    Insulation    Lead Type    Length    Options
     A = Santoprene    A = Single Phase, AØ-Red    in feet    C = C-hook
     C = Silicone    B = Single Phase, BØ-Yellow
         C = Single Phase, CØ-Blue
         T = Three Phase Set, AØ-Red, BØ-Yellow, CØ-Blue

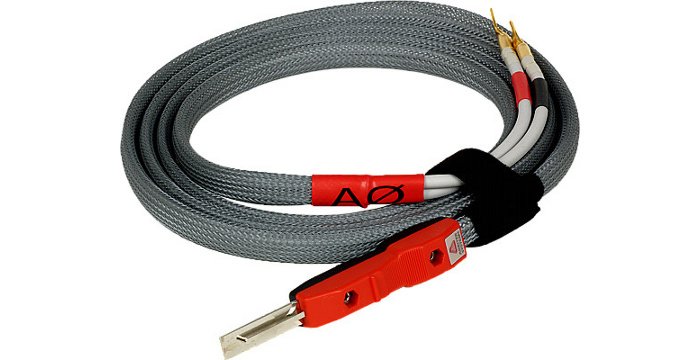

         AS = Single Phase, AØ-Red, 16 AWG, Stackable Banana Plugs

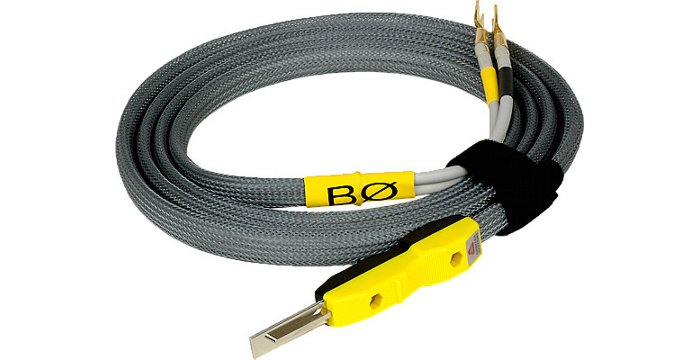

         BS = Single Phase, BØ-Yellow, 16 AWG, Stackable Banana Plugs

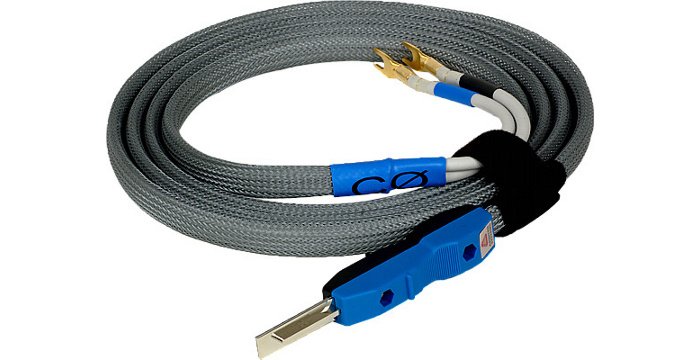

         CS = Single Phase, CØ-Blue, 16 AWG, Stackable Banana Plugs
         TS = Three Phase Set, AØ-Red, BØ-Yellow, CØ-Blue, 16 AWG, Stackable Banana Plugs

* Standard length.

Wire Type

Available in either:

  • #10 AWG, 1666 x #42 stranding, 1.15 mm (0.045 in) Santoprene insulation; 6.1 mm (0.240 in) OD.
  • #10 AWG, 1064 x #40 stranding, 1.15 mm (0.045 in) silicone insulation; 5.8 mm (0.230 in) OD.

Or, if selecting the Stackable Banana Plugs:

  • #16 AWG, 665 x #44 stranding, 1.5 mm (0.060 in) Santoprene insulation; 4.8 mm (0.187 in) OD.
  • #16 AWG, 665 x #44 stranding, 1.5 mm (0.060 in) silicone insulation; 4.8 mm (0.187 in) OD.

Plug 1

Universal Test Plug

Plug 2

Gold-Plated, 0.25 in Spade Lug

Or, if selecting the Stackable Banana Plugs:
Gold-Plated, 4-mm, Safety-Shrouded, Stackable Banana Plug

Length

All lead sets are 2.5 m (8 ft) long overall, standard. Specify length in feet when ordering.

Color

Current leads: wire insulation color is gray; leads are supplied in pairs with colored phase markers on each pair (red/A Ø, yellow/B Ø, blue/C Ø) and colored polarity markers on each (+) lead (red, yellow, or blue) and (-) lead (black).

Or, if selecting the Stackable Banana Plugs:

  • A Ø = red
  • B Ø = yellow
  • C Ø = blue
  • Neutral = black

Velcro Strap

Included

Fused

No

General
811optC-Hook C-Hook Lugs, One End
Available
841A Series Test Jack Isolator Paddle
842A Three - Series Test Jack Isolator Paddles with 60 cm Nylon Cord
842B Four - Series Test Jack Isolator Paddles with 60 cm Nylon Cord
