Model 816 Spade Lug Current Lead Sets

Model 816 Spade Lug Current Lead Sets

Test lead set featuring gold plated, 0.25 in spade lugs on both ends, available as individal cables or as a set, in #10 AWG Santoprene or Silicone lead wire.



Test Leads Data Sheet
Download (255 kB) »

The 816 Series Spade Lug Current Lead Sets are the ideal test leads for use with your Arbiter Systems three-phase measurement product. Lead sets are constructed with gold plated 0.25 in spade lugs, and our super flexible #10 AWG fine strand, rope-lay conductors, available in Santoprene or Silicone insulation.

Available as individual phase labeled pairs or as a three-phase, three pair set, each pair are enclosed in gray PET armor and come with a hook and loop lashing strap.

Intended for everyday use by technicians in the most demanding environments, the 816 Series Spade Lug Current Lead Sets are designed for long life and are suitable for use with all Arbiter Systems Inc. three-phase current measuring products.

Also available with our gold-plated, 0.25 in, safety c-hook lugs (See 818 Series).

  • Gold plated 0.25 in spade lugs on both ends.
  • Available #10 AWG Santoprene or Silicone lead wire.
  • AØ-Red, BØ-Yellow, CØ-Blue phase markings.
  • Specify length when ordering. Standard length is 2.5 m (8 ft).
  • Individual pairs or as a set for three-phase testing.

Build-a-Part Ordering Structure:

816 -   -   -  8*
Series    Insulation    Lead Type    Length

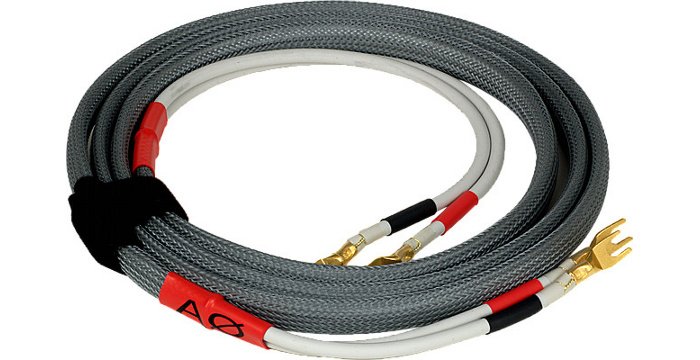

     A = Santoprene    A = Single Phase, AØ-Red    in feet

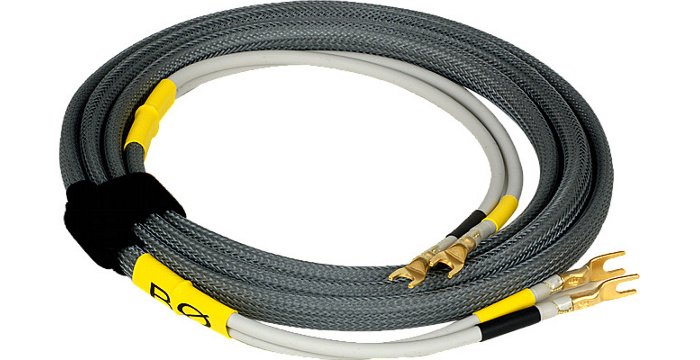

     C = Silicone    B = Single Phase, BØ-Yellow

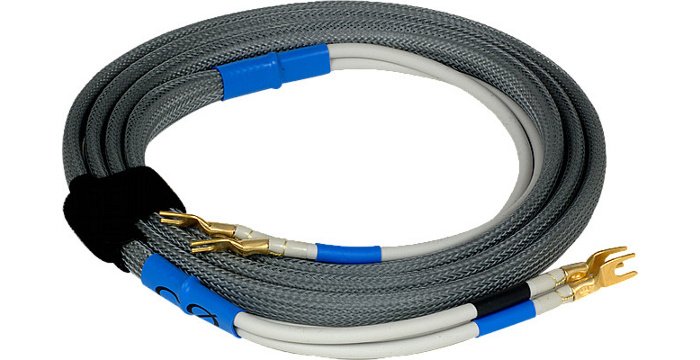

         C = Single Phase, CØ-Blue

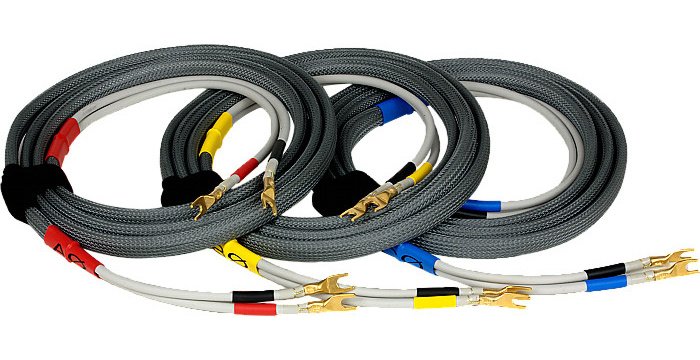

         T = Three Phase Set:, AØ-Red, BØ-Yellow, CØ-Blue

* Standard length.

Wire Type

Available in either:

  • #10 AWG, 1666 x #42 stranding, 1.15 mm (0.045 in) Santoprene insulation; 6.1 mm (0.240 in) OD.
  • #10 AWG, 1064 x #40 stranding, 1.15 mm (0.045 in) silicone insulation; 5.8 mm (0.230 in) OD.

Plug 1

Gold-Plated, 0.25 in Spade Lug

Plug 2

Gold-Plated, 0.25 in Spade Lug

Length

All lead sets are 2.5 m (8 ft) long overall, standard. Specify length in feet when ordering.

Color

Current leads: wire insulation color is gray; leads are supplied in pairs with colored phase markers on each pair (A Ø-red, B Ø-yellow, C Ø-blue) and colored polarity markers on each (+) lead (red, yellow, or blue) and (-) lead (black).

Velcro Strap

Included

Fused

No

There are no additional Options available for this product.
Available
841A Series Test Jack Isolator Paddle
842A Three - Series Test Jack Isolator Paddles with 60 cm Nylon Cord
842B Four - Series Test Jack Isolator Paddles with 60 cm Nylon Cord
